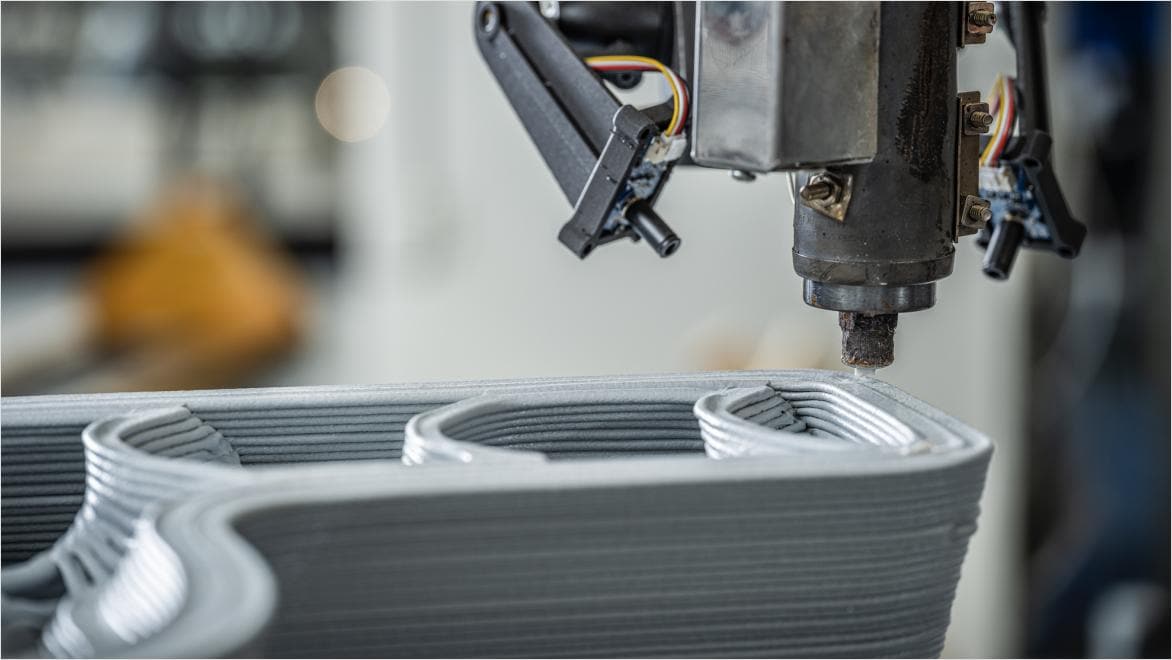

What is FFF and FDM 3D printing, and how do they work?
What is FFF and FDM 3D printing, and how do they work?
FFF (Fused filament fabrication) and FDM (Fused deposition modeling) are both 3D printing technologies that involve melting a plastic filament and extruding it through a heated nozzle to build up a 3D object layer by layer. The printer moves along the X, Y, and Z axes to accurately shape the object.
The primary difference between FFF (Fused filament fabrication) and FDM (Fused deposition modeling) is that FDM is a trademarked term used by Stratasys to refer to this process, while FFF is a more general term used across the 3D printing industry to describe the same technology.
FFF (Fused filament fabrication) and FDM (Fused deposition modeling) are both 3D printing technologies that involve melting a plastic filament and extruding it through a heated nozzle to build up a 3D object layer by layer. The printer moves along the X, Y, and Z axes to accurately shape the object.
The primary difference between FFF (Fused filament fabrication) and FDM (Fused deposition modeling) is that FDM is a trademarked term used by Stratasys to refer to this process, while FFF is a more general term used across the 3D printing industry to describe the same technology.
What are the main differences between FFF and FDM 3D printing?
Both technologies are similar, but FDM is a specific brand of FFF. In practice, FDM printers tend to be more commonly used in professional settings, while FFF is a more general term used in both hobbyist and professional 3D printing.

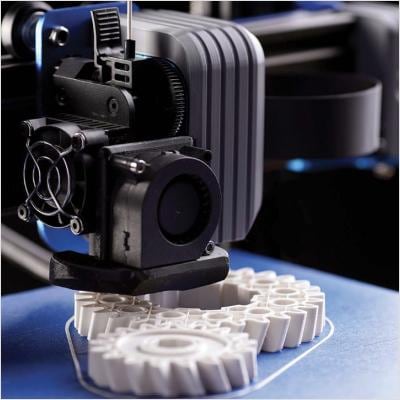

FDM (Fused deposition modeling)
Terminology: Trademarked by Stratasys, used in professional and industrial settings.
Cost: More expensive, typically linked to high-end machines.
Market: Common in industries like automotive, aerospace, and healthcare.
Materials: Supports specialized filaments (e.g., high-strength, high-temp, composites).
Print Quality: Known for high precision and consistent results, ideal for industrial applications.

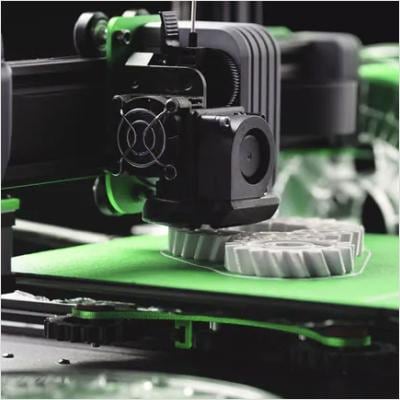

FFF (Fused filament fabrication)
Terminology: General term used widely in the 3D printing community.
Cost: More affordable, often used by hobbyists and small businesses.
Market: Popular in prototyping and educational use.
Materials: Primarily uses PLA, ABS, PETG, with fewer specialized options.
Print Quality: Varies by printer, typically suited for non-critical applications and rapid prototyping.
What materials work best for FFF and FDM printing, and why?
PLA (Polylactic acid)
PLA (Polylactic acid)
A biodegradable, easy-to-print material that offers a smooth finish. It’s great for prototyping, decorative objects, and low-stress applications.
A biodegradable, easy-to-print material that offers a smooth finish. It’s great for prototyping, decorative objects, and low-stress applications.
ABS (Acrylonitrile butadiene styrene)
ABS (Acrylonitrile butadiene styrene)
Known for its strength and impact resistance, ABS is ideal for functional prototypes and parts that need to endure physical stress and wear.
Known for its strength and impact resistance, ABS is ideal for functional prototypes and parts that need to endure physical stress and wear.
PETG (Polyethylene terephthalate glycol)
PETG (Polyethylene terephthalate glycol)
A strong, flexible material that is resistant to impact and chemicals. PETG is great for parts requiring durability and food-safe applications.
A strong, flexible material that is resistant to impact and chemicals. PETG is great for parts requiring durability and food-safe applications.
TPU (Thermoplastic polyurethane)
TPU (Thermoplastic polyurethane)
A flexible, rubber-like material that offers great abrasion resistance. TPU is perfect for items like phone cases, seals, and gaskets.
A flexible, rubber-like material that offers great abrasion resistance. TPU is perfect for items like phone cases, seals, and gaskets.
Nylon
Nylon
A tough and flexible plastic, known for its durability and resistance to abrasion. Nylon is commonly used for mechanical parts like gears and bearings.
A tough and flexible plastic, known for its durability and resistance to abrasion. Nylon is commonly used for mechanical parts like gears and bearings.
Polycarbonate (PC)
Polycarbonate (PC)
A high-strength, heat-resistant material suitable for parts exposed to high temperatures or extreme stress, used in industrial and engineering applications.
A high-strength, heat-resistant material suitable for parts exposed to high temperatures or extreme stress, used in industrial and engineering applications.
Importance of FFF 3D printing software for your projects
Importance of FFF 3D printing software for your projects
FFF 3D printing software is essential for optimizing your 3D printing process and ensuring high-quality results. FFF enables you to control key aspects of your prints, such as layer height, print speed, and material usage, while providing tools for precise design and troubleshooting.
The right FFF software can enhance print quality, reduce waste, and improve overall efficiency. Additionally, FFF software supports advanced features like simulation, part orientation, and customization, allowing you to tackle more complex projects and produce reliable, functional prototypes. Whether you're a hobbyist or a professional, using dedicated FFF software ensures better print performance and smoother workflows.
FFF 3D printing software is essential for optimizing your 3D printing process and ensuring high-quality results. FFF enables you to control key aspects of your prints, such as layer height, print speed, and material usage, while providing tools for precise design and troubleshooting.
The right FFF software can enhance print quality, reduce waste, and improve overall efficiency. Additionally, FFF software supports advanced features like simulation, part orientation, and customization, allowing you to tackle more complex projects and produce reliable, functional prototypes. Whether you're a hobbyist or a professional, using dedicated FFF software ensures better print performance and smoother workflows.
Industries that use FFF 3D printing

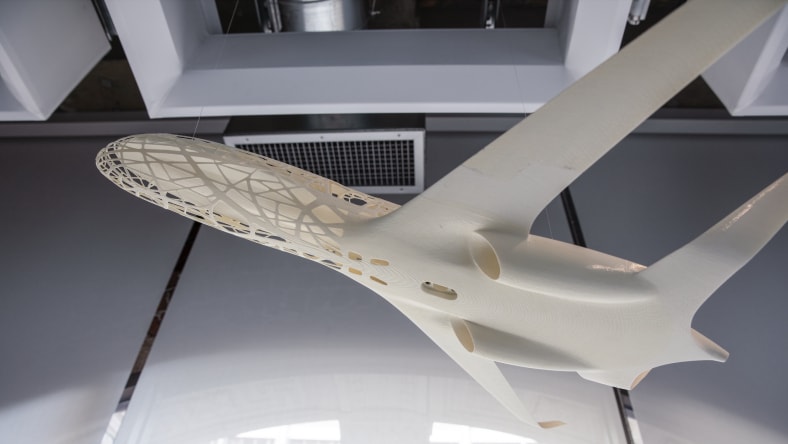

Aerospace
Aerospace
A biodegradable, easy-to-print material that offers a smooth finish. It’s great for prototyping, decorative objects, and low-stress applications.
A biodegradable, easy-to-print material that offers a smooth finish. It’s great for prototyping, decorative objects, and low-stress applications.

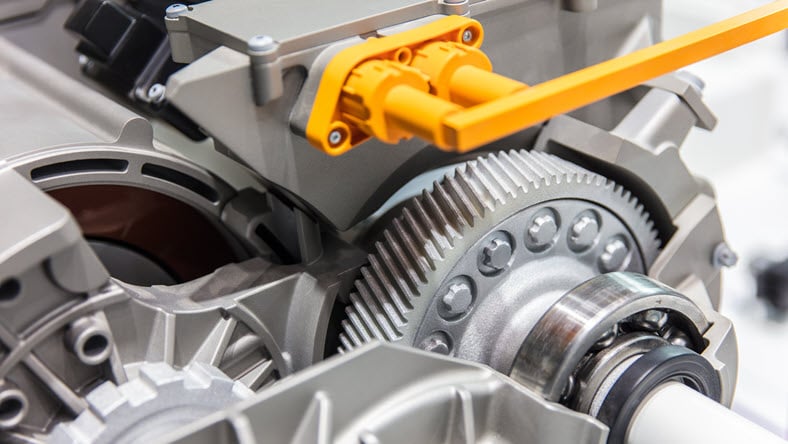

Automotive
Automotive
Known for its strength and impact resistance, ABS is ideal for functional prototypes and parts that need to endure physical stress and wear.
Known for its strength and impact resistance, ABS is ideal for functional prototypes and parts that need to endure physical stress and wear.

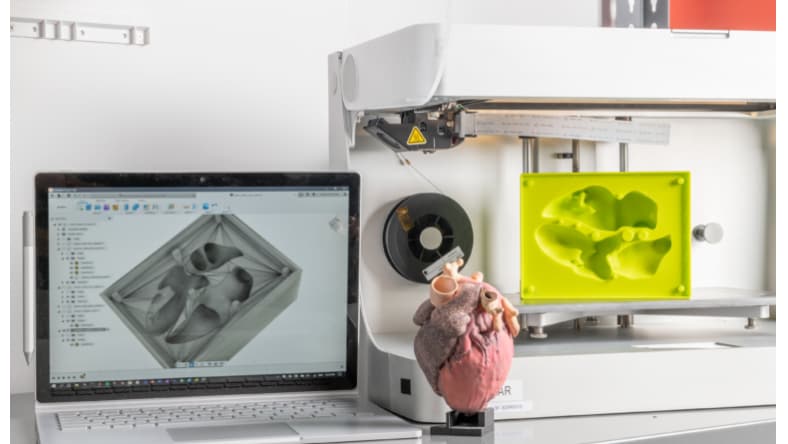

Healthcare
Healthcare
A strong, flexible material that is resistant to impact and chemicals. PETG is great for parts requiring durability and food-safe applications.
A strong, flexible material that is resistant to impact and chemicals. PETG is great for parts requiring durability and food-safe applications.
Consumer goods
Consumer goods
FFF enables consumer goods manufacturers to quickly prototype product designs, test functionality, and produce small batches of custom items to reduce production time.
FFF enables consumer goods manufacturers to quickly prototype product designs, test functionality, and produce small batches of custom items to reduce production time.
Common challenges in FFF and FDM 3D printing and solutions
Common challenges in FFF and FDM 3D printing and solutions
Warping: Occurs when printed parts cool unevenly
Solution: Use heated beds, optimize print settings, and choose materials with low shrinkage
Layer adhesion issues: Poor adhesion between layers can result in weak prints
Solution: Adjust temperature settings, use adhesives or adhesion aids, and ensure proper bed leveling
Stringing: Fine threads of filament left on prints due to oozing of the extruder
Solution: Increase retraction settings and fine-tune print speed and temperature
Material inconsistency: Filament diameter or quality variations can affect prints
Solution: Use high-quality, consistent filaments and ensure proper storage to prevent moisture absorption
Print failures: Prints detaching or shifting during the process
Solution: Calibrate the printer, improve bed adhesion, and optimize print speed
Warping: Occurs when printed parts cool unevenly
Solution: Use heated beds, optimize print settings, and choose materials with low shrinkage
Layer adhesion issues: Poor adhesion between layers can result in weak prints
Solution: Adjust temperature settings, use adhesives or adhesion aids, and ensure proper bed leveling
Stringing: Fine threads of filament left on prints due to oozing of the extruder
Solution: Increase retraction settings and fine-tune print speed and temperature
Material inconsistency: Filament diameter or quality variations can affect prints
Solution: Use high-quality, consistent filaments and ensure proper storage to prevent moisture absorption
Print failures: Prints detaching or shifting during the process
Solution: Calibrate the printer, improve bed adhesion, and optimize print speed
Fusion 360 offerings for FFF and FDM 3D printing
Autodesk Fusion
Fusion Simulation Extension
Fusion Manufacturing Extension
Optimizing FFF and FDM 3D printing workflows with Fusion
Optimizing FFF and FDM 3D printing workflows with Fusion
Autodesk Fusion streamlines FFF and FDM 3D printing workflows by providing an integrated platform for design, simulation, and manufacturing. Fusion enables users to create precise 3D models, optimize print settings, and simulate print outcomes before actual production.
Fusion’s tools help refine designs for better printability, reduce material waste, and ensure part durability. Seamlessly export optimized files to 3D printers to ensure a smooth transition from design to prototype with enhanced efficiency and accuracy.
Autodesk Fusion streamlines FFF and FDM 3D printing workflows by providing an integrated platform for design, simulation, and manufacturing. Fusion enables users to create precise 3D models, optimize print settings, and simulate print outcomes before actual production.
Fusion’s tools help refine designs for better printability, reduce material waste, and ensure part durability. Seamlessly export optimized files to 3D printers to ensure a smooth transition from design to prototype with enhanced efficiency and accuracy.
What tools do I need to start FFF 3D printing?

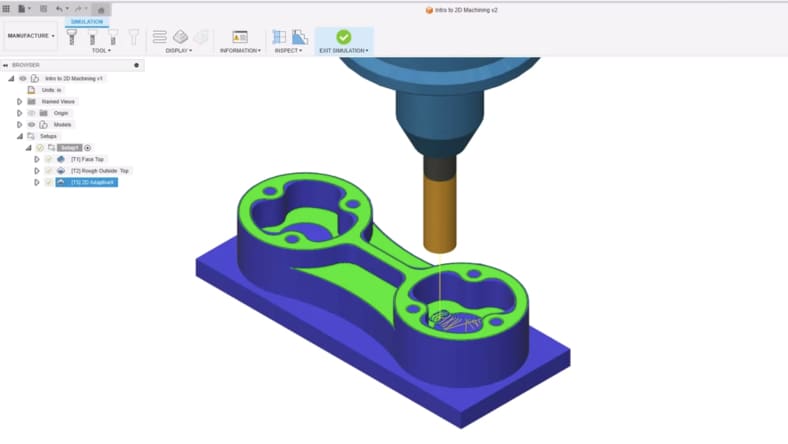

Toolpath Simulation
Toolpath Simulation
Simulates toolpaths before actual printing to detect potential issues, ensuring smoother production and optimized results.
Simulates toolpaths before actual printing to detect potential issues, ensuring smoother production and optimized results.

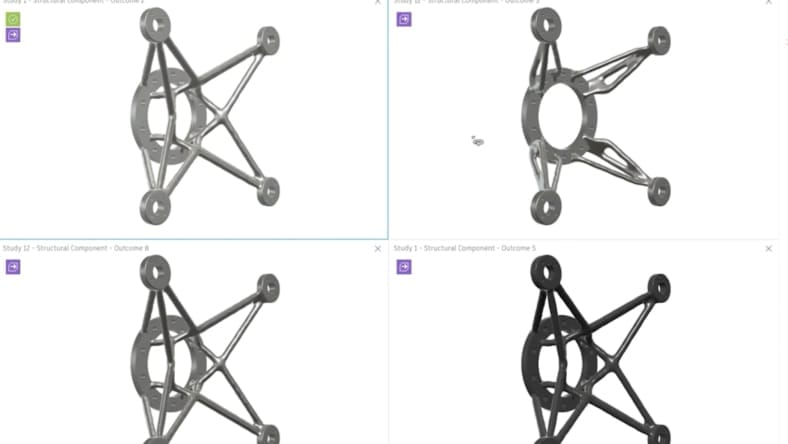

Generative design
Generative design
Generates multiple design alternatives based on defined constraints, optimizing for material use, weight, and performance, ensuring more efficient prints.
Generates multiple design alternatives based on defined constraints, optimizing for material use, weight, and performance, ensuring more efficient prints.

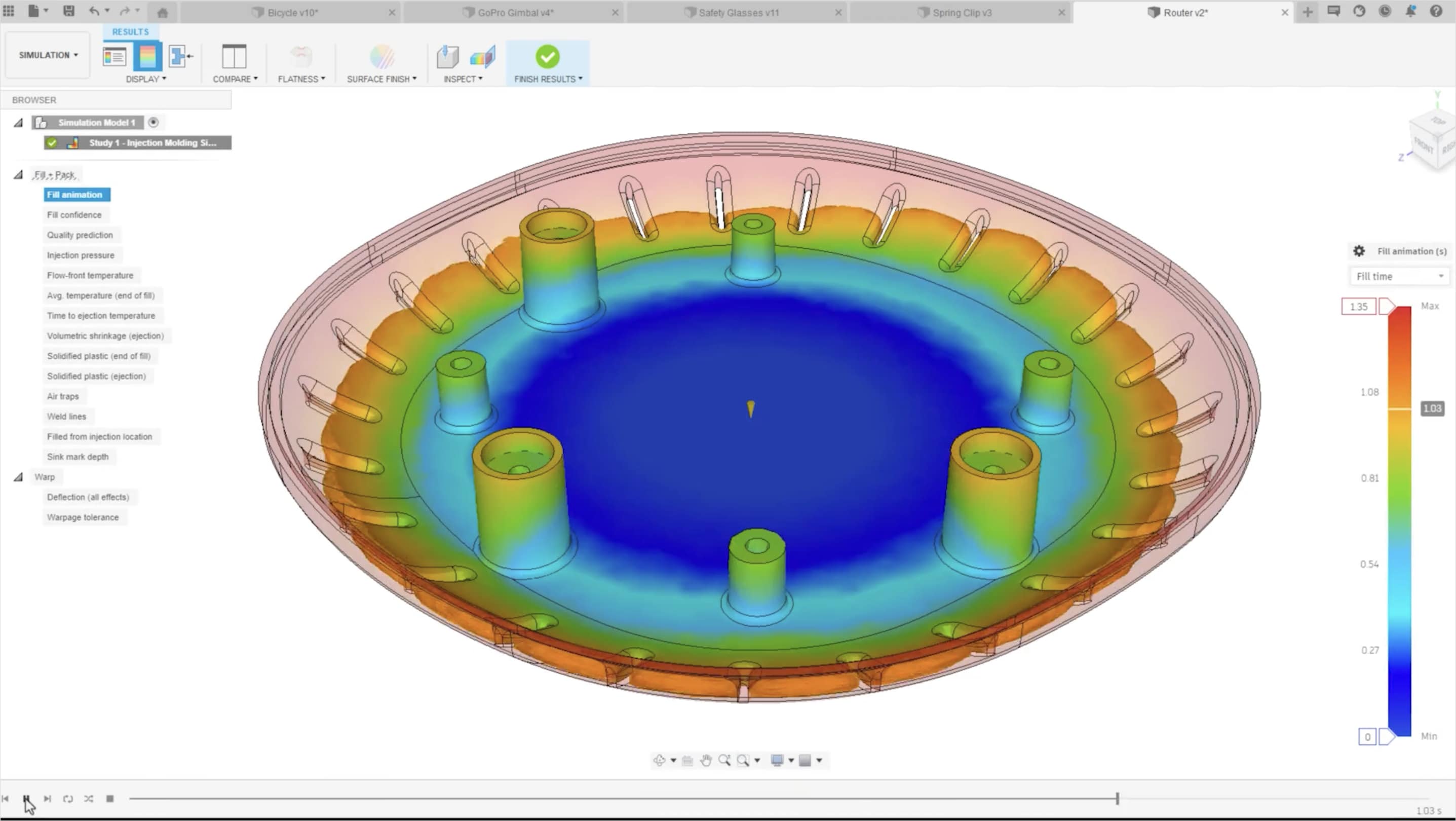

Simulation tools
Simulation tools
Provides stress, thermal, and deformation analysis to validate your designs for manufacturability and performance before printing.
Provides stress, thermal, and deformation analysis to validate your designs for manufacturability and performance before printing.

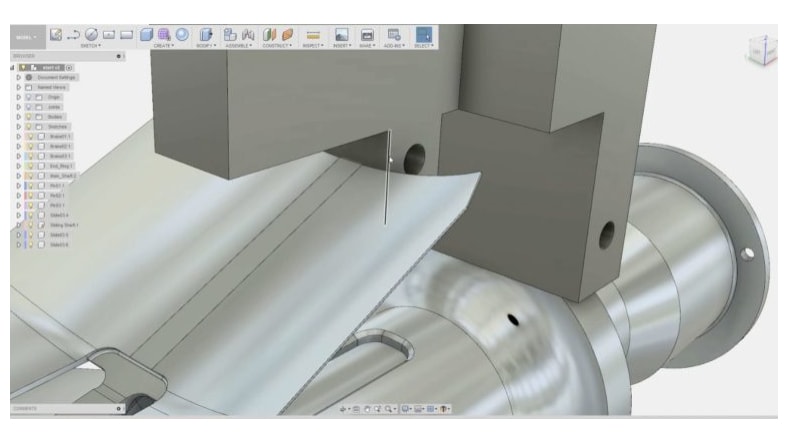

Direct modeling
Direct modeling
Enables quick, flexible modifications to design geometry without requiring a history-based approach, making it easier to adapt designs for 3D printing needs.
Enables quick, flexible modifications to design geometry without requiring a history-based approach, making it easier to adapt designs for 3D printing needs.

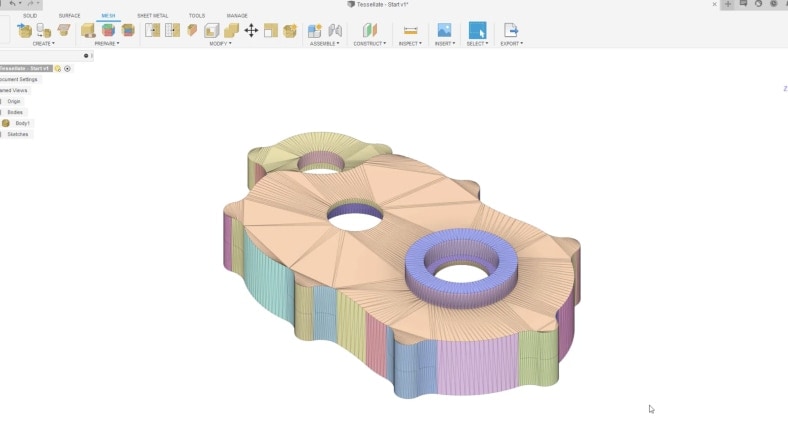

Mesh environments
Mesh environments
Helps prepare and edit mesh models for 3D printing by repairing errors and optimizing the geometry for better print quality.
Helps prepare and edit mesh models for 3D printing by repairing errors and optimizing the geometry for better print quality.
Parametric modeling
Parametric modeling
Allows for precise control over design dimensions and features, making it easier to modify and optimize designs for 3D printing.
Allows for precise control over design dimensions and features, making it easier to modify and optimize designs for 3D printing.
Tolerances and fit
Tolerances and fit
Ensures proper clearances and fit for parts, avoiding issues such as incorrect part assembly or interference in the final print.
Ensures proper clearances and fit for parts, avoiding issues such as incorrect part assembly or interference in the final print.
CAM tools
CAM tools
Prepares designs for manufacturing, including settings for toolpaths, useful for hybrid workflows involving both 3D printing and traditional machining.
Prepares designs for manufacturing, including settings for toolpaths, useful for hybrid workflows involving both 3D printing and traditional machining.
Benefits of using Fusion for designing parts for FFF and FDM printers
Streamline the design process for FFF and FDM 3D printing with Fusion’s all-in-one CAD, CAM, and CAE tools.Â
Streamline the design process for FFF and FDM 3D printing with Fusion’s all-in-one CAD, CAM, and CAE tools.Â
Fusion
Fusion
All-in-one platform: Combine CAD, CAM, and CAE, streamlining the design-to-print process
Cloud collaboration: Enable real-time teamwork for faster iteration and feedback
Flexible modeling: Support both parametric and direct modeling, ideal for complex designs
Scalable: Suitable for a wide range of applications, from small prototypes to large-scale projects
All-in-one platform: Combine CAD, CAM, and CAE, streamlining the design-to-print process
Cloud collaboration: Enable real-time teamwork for faster iteration and feedback
Flexible modeling: Support both parametric and direct modeling, ideal for complex designs
Scalable: Suitable for a wide range of applications, from small prototypes to large-scale projects
Fusion Simulation Extension
Fusion Simulation Extension
Design validation: Test performance under real-world conditions to avoid print defects
Stress testing: Simulate forces on parts to identify weaknesses before printing
Material testing: Compare material performance for better print choices
Optimized adjustments: Easily refine designs based on simulation results
Design validation: Test performance under real-world conditions to avoid print defects
Stress testing: Simulate forces on parts to identify weaknesses before printing
Material testing: Compare material performance for better print choices
Optimized adjustments: Easily refine designs based on simulation results
Fusion Manufactruing Extension
Fusion Manufactruing Extension
Advanced CAM: Optimize tool paths for both 3D printing and traditional manufacturing
Efficient print prep: Prepare models with features like toolpath generation and print orientation
Hybrid workflow: Integrate additive and subtractive manufacturing processes
Cost-effective: Reduce material waste and time with optimized print setups
Advanced CAM: Optimize tool paths for both 3D printing and traditional manufacturing
Efficient print prep: Prepare models with features like toolpath generation and print orientation
Hybrid workflow: Integrate additive and subtractive manufacturing processes
Cost-effective: Reduce material waste and time with optimized print setups
Explore FFF and FDM printing workflows in Autodesk Fusion

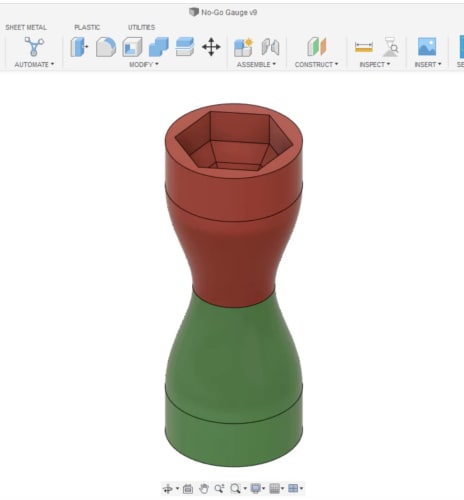

Multi-material and multi-print settings
Multi-material and multi-print settings
Learn how to print a singular body with variable print settings, materials, or colors, for FFF 3D printing with Fusion.

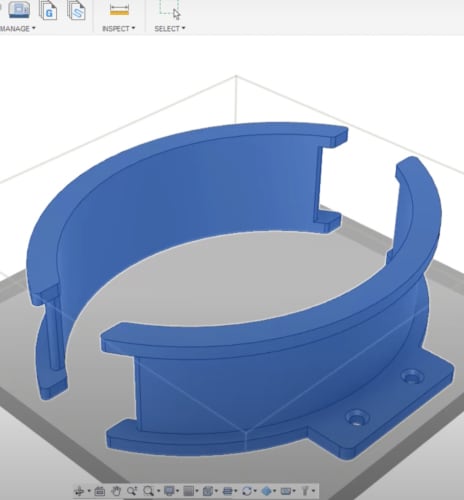

Ultimate guide to Fusion FFF 3D printing
Ultimate guide to Fusion FFF 3D printing
Explore how to prepare FFF 3D prints in Fusion with advanced support placement and slicing tools.

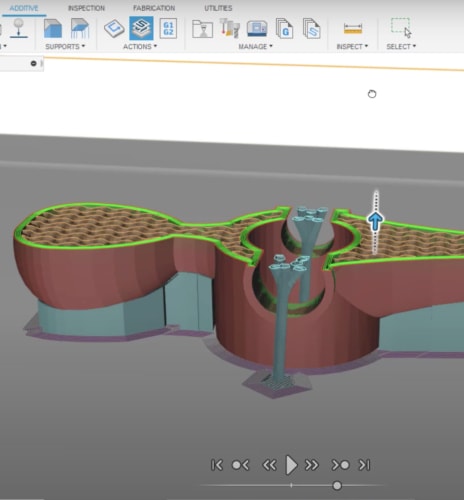

How to use FFF 3D printing supports
How to use FFF 3D printing supports
Discover Fusion's Solid Volume and Bar supports for precise, customizable FFF 3D print preparation.
FFF and FDM 3D printing resources
All About Fused Filament Fabrication (FFF) in Fusion
Explore FFF in Fusion, featuring advanced workflows like customizable support structures, per-body settings, and multi-material printing.
Explore FFF in Fusion, featuring advanced workflows like customizable support structures, per-body settings, and multi-material printing.
How to Calibrate an FFF 3D Printers Print Bed With Autodesk Fusion
Learn how to manually calibrate an FFF 3D printer's print bed using Autodesk Fusion's "Printer Bed Calibration" project for precise, tailored results.
Learn how to manually calibrate an FFF 3D printer's print bed using Autodesk Fusion's "Printer Bed Calibration" project for precise, tailored results.
Post Processing and Postprocessor Properties for FFF Printers
Check out this comprehensive guide to 3D printing and 3D modeling basics, including important terminology you should know.
Check out this comprehensive guide to 3D printing and 3D modeling basics, including important terminology you should know.
FFF 3D Printing Sustainability Considerations
Optimize FFF 3D printing sustainability with better material choices, lifecycle considerations, and reduced power consumption using Fusion.
Optimize FFF 3D printing sustainability with better material choices, lifecycle considerations, and reduced power consumption using Fusion.
Frequently asked questions (FAQs) about FFF and FDM 3D printing
FFF (Fused filament fabrication) and FDM (Fused deposition modeling) are terms used to describe the same 3D printing technology. The difference lies in the terminology: FDM is a trademarked term by Stratasys, while FFF is a more general term used to describe the same process. Both technologies work by melting a filament of material, typically plastic, and depositing it layer by layer to build up a 3D object.
PLAÂ (Polylactic Acid): A biodegradable, easy-to-print material often used for prototypes and models
ABSÂ (Acrylonitrile Butadiene Styrene): Known for strength and impact resistance, commonly used in functional parts
PETGÂ (Polyethylene Terephthalate Glycol): Offers durability and chemical resistance, great for parts exposed to moisture
Nylon: A strong, flexible material ideal for parts that require durability and wear resistance
TPUÂ (Thermoplastic Polyurethane): A flexible and rubber-like material used for creating parts that need to bend or stretch
Composite Filaments: Include materials like carbon fiber, glass-filled, or wood-filled filaments, which combine standard plastics with reinforcing agents for enhanced strength and aesthetics
FFF/FDM 3D printing works by melting a plastic filament and extruding it through a heated nozzle onto a build platform. The printer follows a digital 3D model, laying down the material layer by layer. Each layer cools and solidifies before the next one is added, building the object from the bottom up. This process allows for the creation of complex shapes and structures that would be difficult to achieve with traditional manufacturing methods. The technology is often used for prototyping, producing functional parts, and creating custom designs.
